- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 99
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5250GXWZ
- Weight: 11900.000 kg
Specifications
Sinotruk 336hp vacuum suction vehicle ,sewer truck
1 High suction efficiency
2 capacity 20m3
3 12 months warranty
4 Euro3

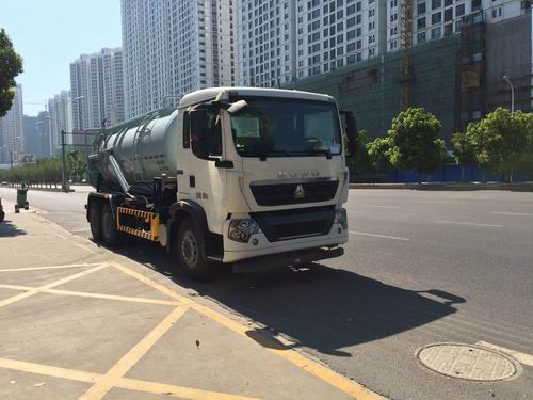

Sinotruk HOWO 6*4 vacuum suction truck
1. Brief introduction of the vacuum truck
A vacuum truck is a tank truck with a heavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be a direct PTO/belt or a PTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with a pony motor. Each application has different handling characteristics.
The trucks are often used by towns and municipalities for street cleanup, sewers, individual septic systems [1] and can also be used for cleanup of contaminated soil.The trucks are used in the cleaning of sanitary sewer lift stations and in the pump out of grease interceptors that are required at many restaurants. The trucks are mostly used in the petroleum industry, for cleaning of storage tanks and spills. They are also an important part of drilling oil and natural gas wells, as they are located at the drilling site. Vacuum trucks are used to remove drilling mud, drilling cuttings, cement, spills, and for removal of brine water from production tanks. They dispose of this in sump pits, treatment plants or if within safe levels may be spread out in a farmer's field.[2]
- Size: 99
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5250GXWZ
- Weight: 11900.000 kg
Whole truck Information List | |||
Truck model | CLW5250GXWZ | ||
Total mass | 25000 | ||
Rated mass | 13000 | Overall Dimension (L*W*H ) | 10100×2490×3850 |
Curb weight | 11870 | Tank Dimension (L*D) | 6000×2200 |
Drive type | 6*4 | Cabin seat | 2 |
A/D angle | 16/15 | F/R hang | 1500/2650 |
Axles | 3 | Wheel base | 4600 1350 |
Axles loading | 7000/18000/18000 | Max speed | 90 |
Chassis Information List | |||
Chassis model | ZZ1257N4647C | ||
Tyre quantity | 10 | Tyre size | 11.00-20 18PR |
Leaf spring | 10/12,4/12 | Front track | 2022 |
Fuel type | Diesel | Rear track | 1830 |
Emission Standard | GB17691-2005 EuroⅢ,GB3847-2005 | ||
Engine model | WD615.95E | Displacement/power | 9726/247 |
Horse Power | 336 | Manufacturer | Sinotruk |
Tanker Information | |||
Equipment | 1. Equipped with special vacuum pump(rating rotate speed 1400r/m, min rotate speed 800r/m, max suction lift 6m, vacuum 500mmHg, clockwise) 2. Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment 3. Time for full suction 5min | ||
Fuel tanker capacity | 380L | ||
Gear box | Fast fuller 10forward speed ,2 reserve speed | ||
Cabin | MP3 player , USB,driver seat has air suspension , with a sleeper |
