- Size: 27m3
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5060TSLJ4
- Weight: 4600.000 kg
stainless steel water tank 1.5m3, dust tank 4m3, 4 sweeper brush disks, subsidiary engine 78hp(57kw), sweeping width 3.2m, dust diameter 120mm, LED arrow lights, amual pump emergency system, Italy motor, control switch imported from France, magnetic valves from joint venture company, clutch maintenance-free & autosegregation, draught fan maintenance-free
- Size: 27m3
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5060TSLJ4
- Weight: 4600.000 kg

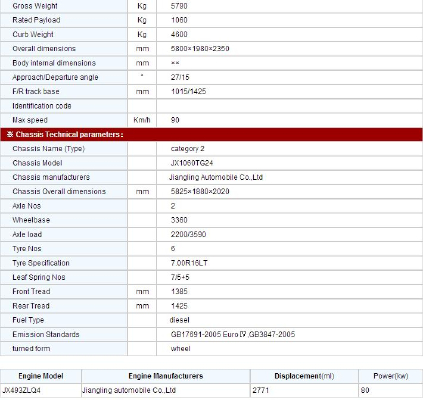

※ Vehicle Technical parameters: | ||
Notice Batch | 238 | |
Gross Weight | Kg | 5790 |
Rated Payload | Kg | 1060 |
Curb Weight | Kg | 4600 |
Overall dimensions | mm | 5800×1980×2350 |
Body internal dimensions | mm | ×× |
Approach/Departure angle | ° | 27/15 |
F/R track base | mm | 1015/1425 |
Identification code | ||
Max speed | Km/h | 90 |
※ Chassis Technical parameters: | ||
Chassis Name (Type) | category 2 | |
Chassis Model | JX1060TG24 | |
Chassis manufacturers | Jiangling Automobile Co.,Ltd | |
Chassis Overall dimensions | mm | 5825×1880×2020 |
Axle Nos | 2 | |
Wheelbase | 3360 | |
Axle load | 2200/3590 | |
Tyre Nos | 6 | |
Tyre Specification | 7.00R16LT | |
Leaf Spring Nos | 7/5 5 | |
Front Tread | mm | 1385 |
Rear Tread | mm | 1425 |
Fuel Type | diesel | |
Emission Standards | GB17691-2005 Euro Ⅳ,GB3847-2005 | |
turned form | wheel |
Engine Model | Engine Manufacturers | Displacement(ml) | Power(kw) |
JX493ZLQ4 | Jiangling automobile Co.,Ltd | 2771 | 80 |
※ Other: |
※ Special Feature Description: |
1.equipped with three layers of filter system, dust filtering ratio up to 99.99%, extendingzzle to sweep the combination of outstanding ability to make clean sweep suction, suction system to achieve the perfect combination to ensure high cleaning and pumping efficiency. 2.With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle 3.Stainless steel water tanks, garbage can makes the working life longer,When cleaning, the sweeping brushes softly contact the ground, largely reducing their wear and extending their working life |
stainless steel water tank 1.5m3, dust tank 4m3, 4 sweeper brush disks, subsidiary engine 78hp(57kw), sweeping width 3.2m, dust diameter 120mm, LED arrow lights, amual pump emergency system, Italy motor, control switch imported from France, magnetic valves from joint venture company, clutch maintenance-free & autosegregation, draught fan maintenance-free. katherine01@foxmail.com 86-15586730356
