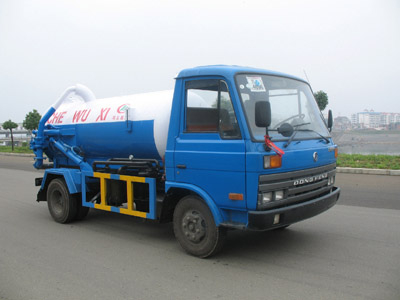

Export dongfeng mini vacuum truck, fecal suction truck
With 3C
Passes the ISO9001-2000
Suitable for all kinds of heavy mach
Export dongfeng mini vacuum truck, fecal suction truck
- Size: 38
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5081GXWW
- Weight: 4500.000 kg
Item | unit | parameter | |||
Vehicle model | CLW5081GXWW Sewage Suction Truck | ||||
Chassis model | EQ1081TJA | ||||
Overall dimensions | mm | 5970×2140×2550 | |||
Factual cubage | L | 3500 | |||
GVW | kg | Appro×7800 | |||
Rated loading capacity | Appro×2980 | ||||
Mass in working order | Appro×4625 | ||||
Body internal dimensions | mm | / | |||
Wheel base | 3100 | ||||
F/R track base | 1750/1586 | ||||
Approach/departure angle | ° | 18/14 | |||
Exhaust/hp | ml/kw | 3856/88 | |||
Max speed | km/h | 90 | |||
Tire specification | 7.00-16,7.50-16 | Engine type | CY4102BZLQ | ||
Traction system | 4×2 | transmission | 5-speed with over drive | ||
Number of axles | 2 | Electric system | 24v | ||
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 | ||
Equipment | Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment Time for full sucktion<5min | ||||
Engine | Chaoyang diesel engine | ||||
Production cycle | 10-15days | ||||
