- Size: 60m3
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5140GXW
- Weight: 6695.000 kg

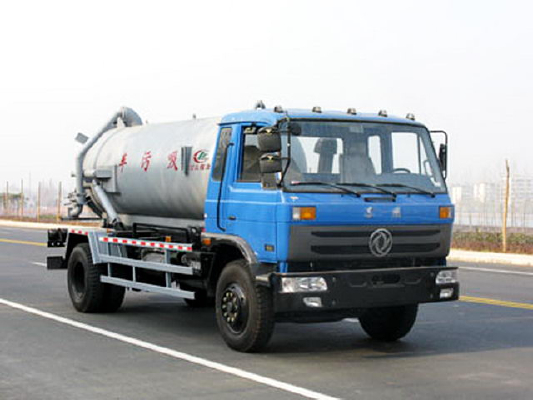

8m3 sewage suction truck for sale
With 3C
Passes the ISO9001-2000
Suitable for all kinds of heavy machinery
OEM
sewage suction truck for sale
- Size: 60m3
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5140GXW
- Weight: 6695.000 kg
Chassis model | EQ1141KJ | |||
Overall dimensions | mm | 8310×2495×3350 | ||
Fact cubage | L | 10000-11000 | ||
Mass in working order | kg | 7705 | ||
Tank dimensions | mm | 4880×1720×1720 | ||
Wheel base | 4500 | |||
Front/rear overhang | 1205/2605 | |||
Approach/departure angle | ° | 25/18 | ||
Exhaust/hp | ml/kw | 5900/140 | ||
Max speed | km/h | 90 | ||
Tire specification | 9.00-20 | Engine type | B190 33 | |
Traction system | 4×2 | Transmission | 6-speed | |
Number of axles | 2 | Electric system | 24v | |
Operation control system | Power steering | Allowable passengers in cab | 3 | |
Equipment | Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed exceed 800r/m, max suction lift exceed 6m, vacuum exceed 500mmHg, clockwise) Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment Time for full suction less than 5min | |||
Engine | Dongfeng Chaoyang Diesel Engine (Euro Ⅲ) | |||
