- Size: 5710×2000×2300
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5060GJY
- Weight: 4115.000 kg

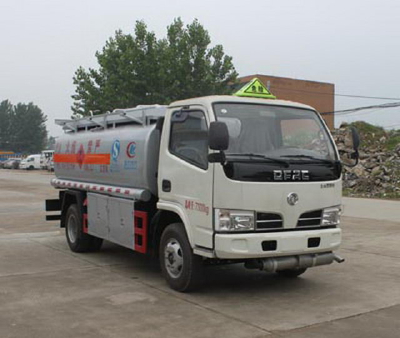

4-5 Cubic Oil Tank truck
Item | unit | parameter | |||
Vehicle model |
| CLW5060GJY Tank truck | |||
Chassis model |
| EQ1061T14DJ2A | |||
Overall dimensions | mm | 5710×2000×2300 | |||
Body internal dimensions | 3600/1480/950 | ||||
Fact cubage | L | 4000-5000 | |||
GVW | kg | Appro×6225 | |||
Rated loading capacity | Appro×1980 | ||||
Mass in working order | Appro×4115 | ||||
Wheel base | mm | 3000 | |||
F/R track base | 1380,1404/1458,1458 | ||||
Front/rear overhang | 962/1748 | ||||
Approach/departure angle | ° | 19/15 | |||
Max speed | km/h | 95 | |||
Engine | |||||
Engine model | Engine manufacturer | Exhaust | Power | ||
CY4100ZLQ | Dongfeng Chaoyang Diesel Engine Co., Ltd. | 3707 | 70 | ||
Fuel type | Diesel | Number of axles | 2 | ||
Axle-load | 2100/4125 | Pieces of spring | 5/8+4,5/9,6/8+4 | ||
Number of tires | 6 | Tire specification | 6.50-16,7.00-16 | ||
Equipment | Meterial:5mm carbon steel.can choose flow meter, tankerpiston and bobbin disk | ||||
Introduction | The trucks are mainly used in the petrochemical sector of oil, chemical liquid transport, with oil, pump oil, a variety of oil equipment, sub-let and other functions. Independent sub-warehouses, equipment can be divided into different oil products, chemicals, food. Designed to achieve pump into pump-off form, into the pump, pump out the form, however, had artesian table, but the table functions. | ||||
Production cycle | 5-7 days | ||||
- Size: 5710×2000×2300
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5060GJY
- Weight: 4115.000 kg
