- Size: 28.8
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5060SSL
- Weight: 4800.000 kg

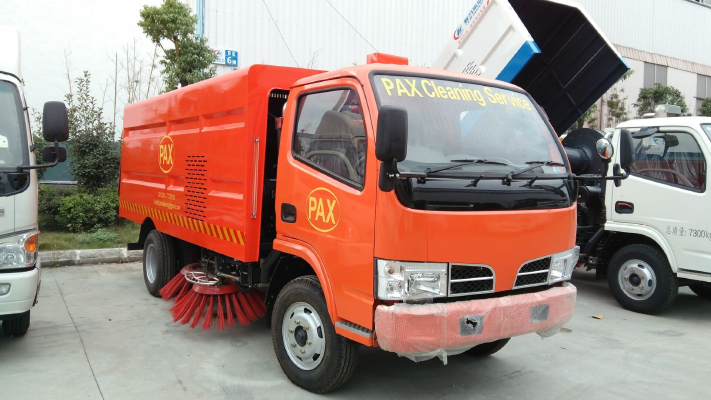

RHD road sweeper
wheelbase 3300
water capacity 1.5m3
debris hopper 4m3
engine 95hp
vice engine 78hp
- Size: 28.8
- Place of Origin: China
- Brand Name: CLW
- Model Number: CLW5060SSL
- Weight: 4800.000 kg
Here are the details.
Chassis Model | EQ1060TJ20D3 | |
Weight | Gross Weight(kg) | 6495 |
Curb Weight(kg) | 4865 | |
Rated Loading Capacity(kg) | 1500,1435 | |
Axle | Axle Number | 2 |
Axle Load (kg) | 2250/4245 | |
Tire | Tire Number | 6 |
Tire Model | 7.00-16,6.50-16,7.00R16,6.50R16 | |
Wheelbase | Front Track (mm) | 1506 |
Rear Track (mm) | 1466 | |
Wheelbase (mm) | 3300 | |
Seating Capacity | 2,3 | |
Maximum Speed(km/h) | 90 | |
Overall Dimension(mm) | 5970*2000*2380 | |
Front/Rear Overhang (mm) | 1032/1638 | |
Approach/Departure Angle(°) | 19/12 | |
Others | When seating capacity is 2, the rated loading capacity is 1500kg, when seating capacity is 3, the rated loading capacity is 1435kg. Shielding material: Q235 carbon steel. | |
